A wide variety of orthopaedic subsystems are configured to work in your standard MTS Bionix material test system to facilitate kinematic or wear properties studies. Precisely configured to reproduce the motions of the human body, these systems are used by researchers to characterize dynamic properties of biomedical materials and components. Extremely versatile and compact, these systems employ highly configurable FlexTest® controls, proven MTS test application software and environmental chambers.
Internal / external rotation (greater than 20 degrees)
Following activities can be programmed in combination: level walking, descending / ascending stairs, sitting in / rising from a chair
Femoral Fatigue Subsystem
For testing femoral stem components of hip replacements to ASTM 1440 and ISO 7206-4
Includes load cell adapter, potting cup base, chamber and seals, chamber holder and thrust bearing and lower housing assembly
Knee Wear Subsystem
Performs active flexion testing with these six degrees of freedom:
Axial loading to 5 kN
Torsion (tibial rotation greater than 20 degrees)
Flexion / extension up to 120 degrees
Anterior-posterior shearing to 20 mm
Varus / valgus alignment (free-floating)
Medial / lateral (free-floating)
Following activities can be programmed in combination: level walking, descending / ascending stairs, sitting in / rising from a chair

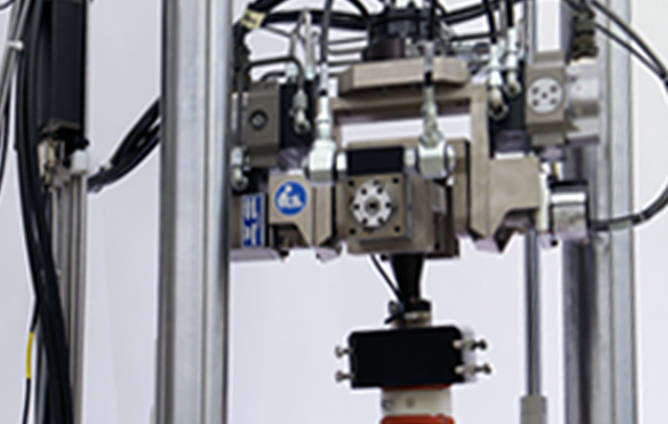

Spine Kinematics Subsystem
Addresses spinal flexion, extension, lateral bending, axial rotation, axial force and displacement, and combined motions
Combined motion accelerates testing to make the most of highly perishable cadaveric specimens
Smooth motion facilitates precise evaluations
Dental Implants
For testing dental implant durability
Featured Case Studies
Technical Overview
A Modular Solution for Spine Kinematics Research
Developing effective treatments for spinal injuries and disease is one of the more daunting challenges facing the field of orthopaedics today. Whether the approach involves fixation techniques or the use of motion preservation devices, meaningful development requires extensive knowledge of the complexities of spine kinematics.

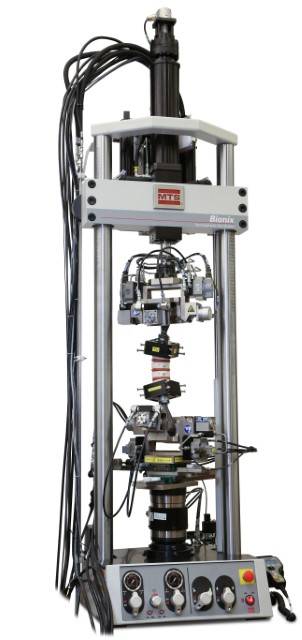

To help build this body of knowledge, MTS has developed the Bionix Spine Kinematics Subsystem: a modular, mechanical testing platform designed specifically for characterizing the behavior of spine specimens under a full spectrum of real world forces and motions.
Combined with a compact axial/torsional servohydraulic load frame, versatile FlexTest® digital controls and MTS TestSuite MP software, the Spine Kinematics Subsystem offers a complete out-of-the-box solution for applying a wide array real-world forces and motions to cadaveric spine specimens.
The subsystem features a selection of both actively-controlled, powered modules and passive non-powered modules that can be integrated to simulate flexion, extension, lateral bending, axial rotation, and combined twisting and flexural motions. To isolate a specific mode of loading for study, other loads can be held at zero or user-defined values. Additionally, the subsystem is designed to provide clear visibility of the specimen under test and to speed setup and testing to make optimal use of perishable biological specimens.
