Seismic Simulators (Shake Tables)
The MTS seismic simulator portfolio features a host of standard, pre-engineered and custom tables for evaluating everything from nonstructural infrastructure to structural components and substructures to model-scale and full-scale civil structures. Precise seismic loading in up to six degrees-of-freedom can be applied to a broad array of test articles to evaluate their behavior under real-world earthquake conditions.
Applications
- Simulação Sísmica
- Qualificação Sísmica
Test Specimens
- Estruturas civis
- Subestruturas
- Componentes
Test Standards
- Teste de qualificação para terremotos AC156
Key Product Features
First-of-a-Kind
MTS has designed, installed and partnered with our customers on many of the world’s largest shake tables, including NIED, University of California - San Diego and Southwest Jiaotong University
Industry Standard
MTS has the largest world-wide installed base of seismic simulators. We have five decades of collaboration with the world’s premier civil engineering research institutions
Unmatched Expertise
PhD-level MTS System Integration Engineers provide expert guidance and training
Innovative Technology
Degree-of-Freedom Control, Real-time Control, Three-variable Control, Adaptive Control and Specimen Dynamics Compensation (SDC)
Model Comparison
1.5m Uni-axial Table
- Perform basic seismic research on scaled down structures
- Quick Installation and integration into existing labs
- Playback of scaled earthquake time history files
- Lower cost, entry-level option

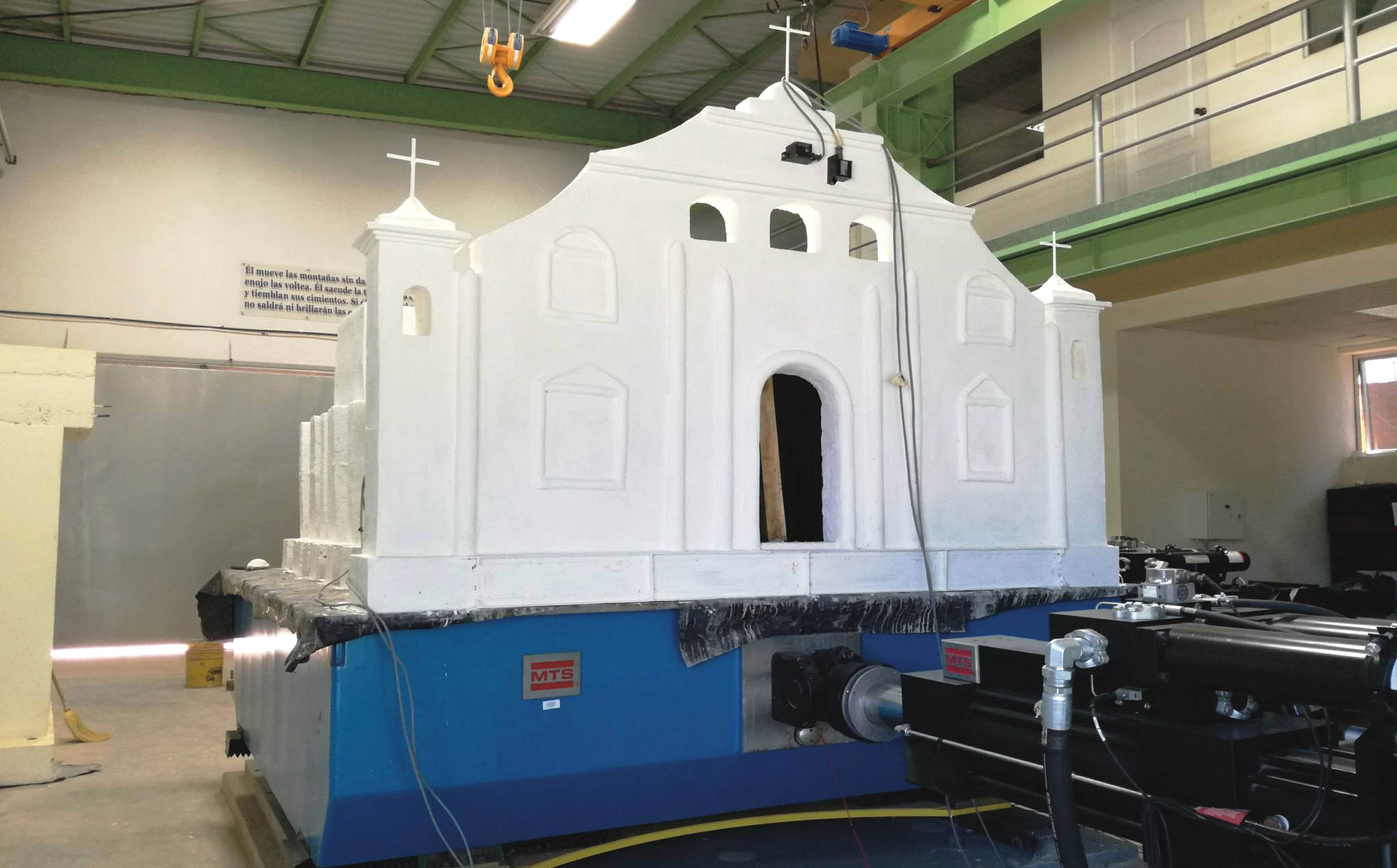

3m Uni- & Bi-axial Tables
- Perform fundamental seismic research, up to 10 ton specimens can be tested
- Uniaxial and Biaxial variants available
- Can be pit mounted or come equipped with actuator buttresses
- Large displacement range (500 mm) to simulate realistic ground motions

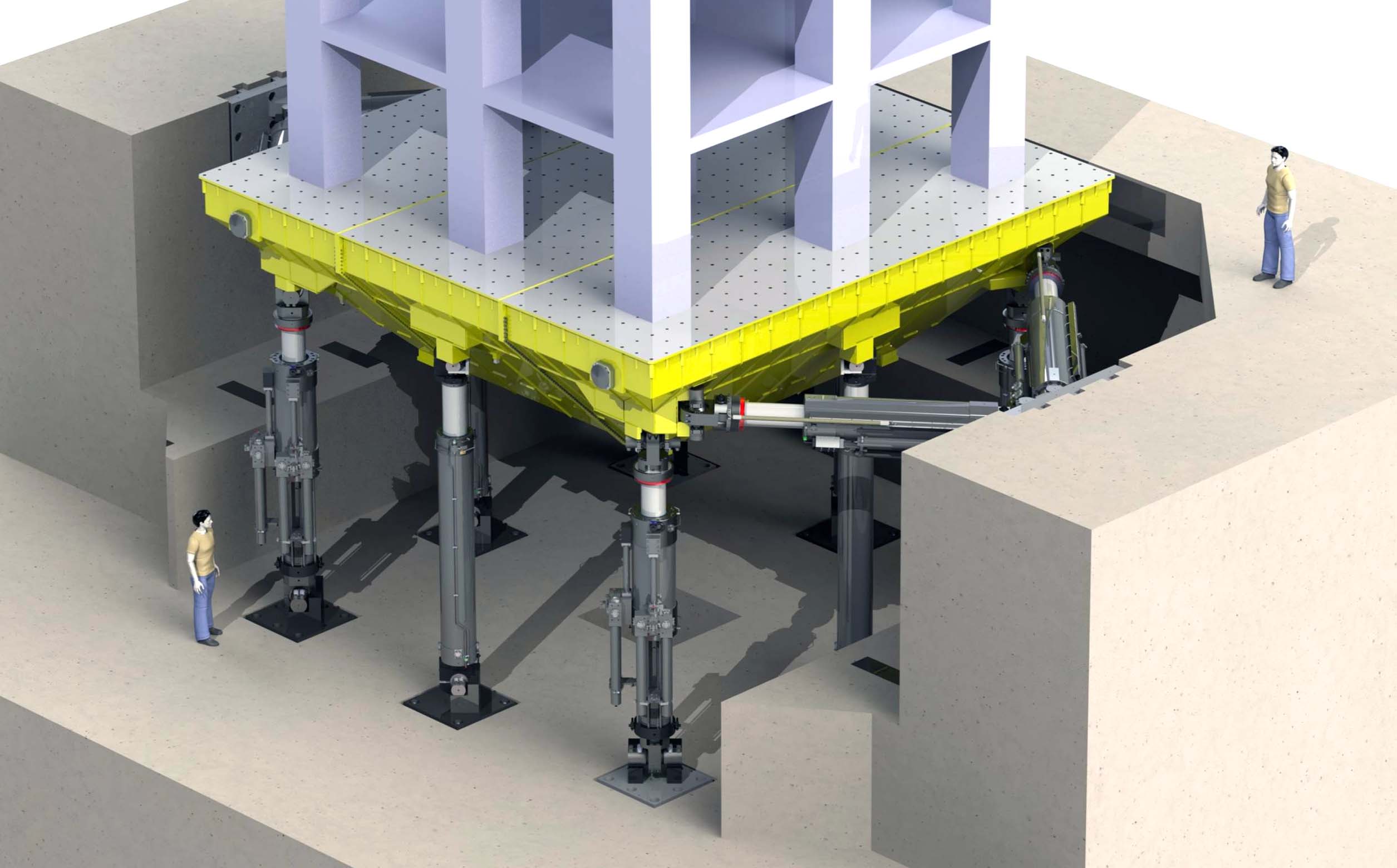

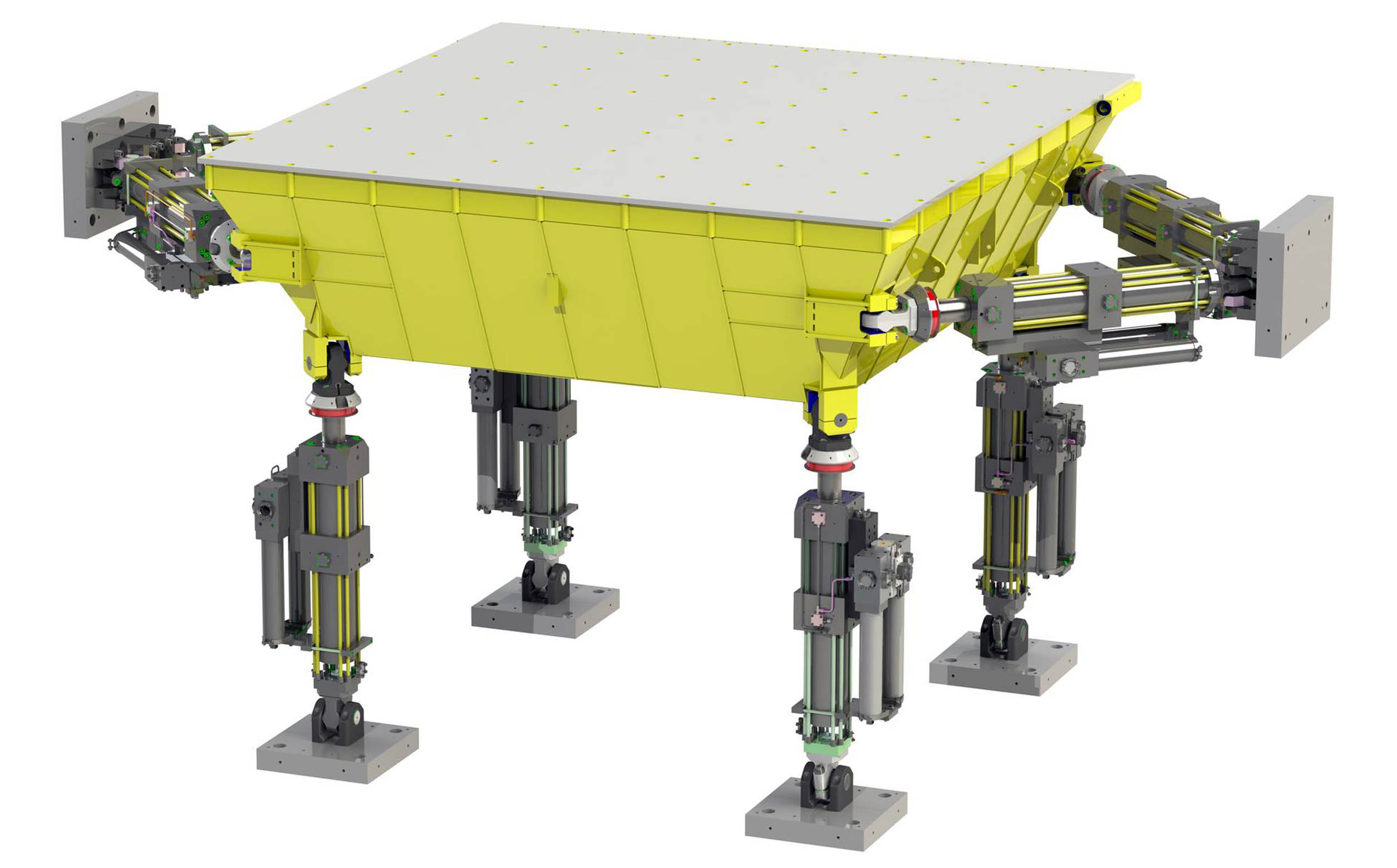

4m & 5m 6DOF Tables
- Perform full six degree of freedom seismic shaking
- Larger specimens (up to 40 ton payloads)
- Best suited for researchers looking for unique seismic performance
- Pre-engineered table offers faster lead time and lower cost when compared to custom designed tables.

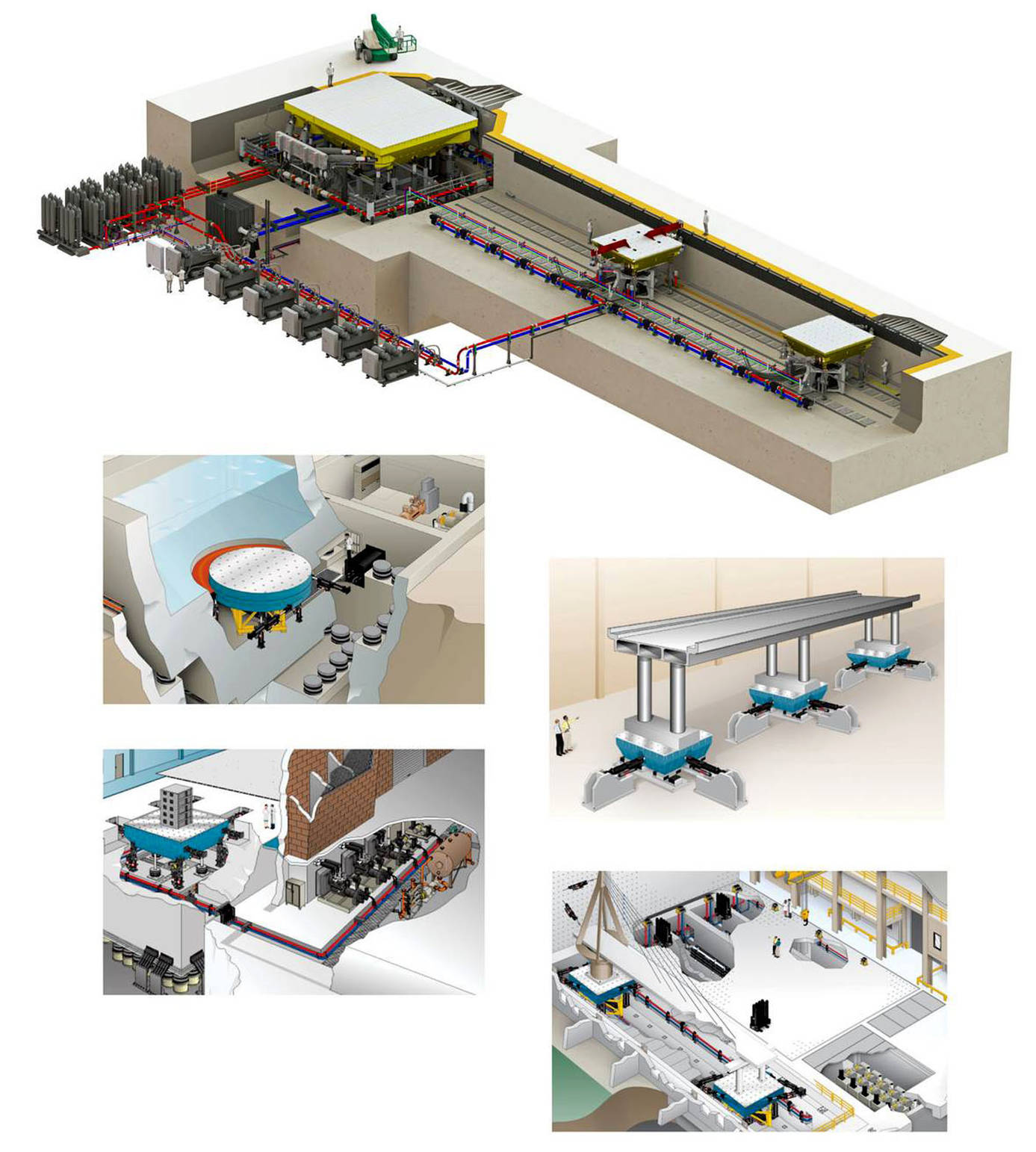

Custom Seismic Tables
- Perform complete/full-scale seismic research, MTS can design any size table and payload requirements per your specification
- 6 DOF or multiple tables working together
- MTS has the largest installed base of custom seismic simulators
2m x 2m Multi-Axial Simulation Table
-
Perform seismic qualification testing of components (AC156)
-
6 DOF using "hexapod" design
- Up to 2,000 kg payload
-
Up to 100 Hz control bandwidth
Featured Case Studies

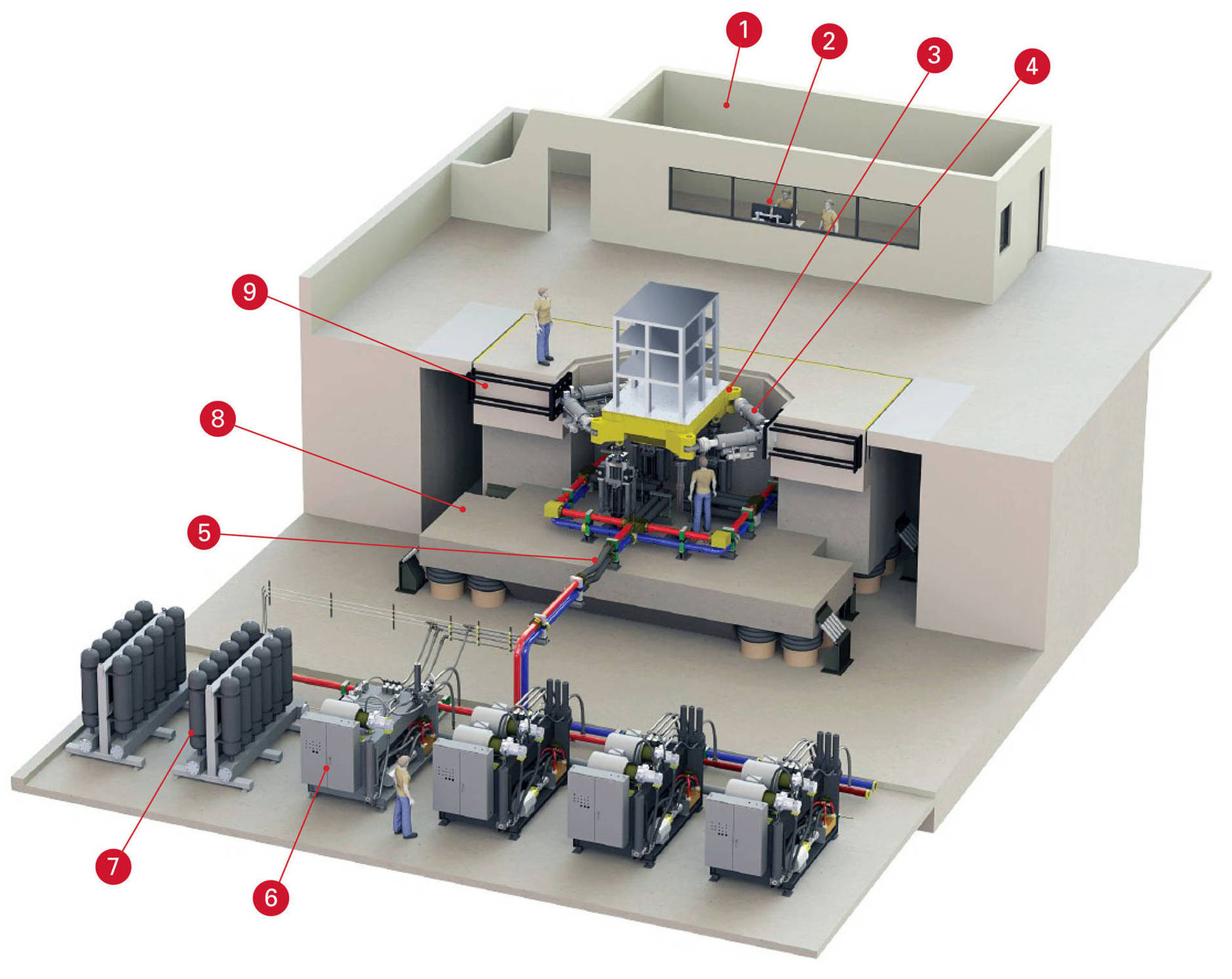

Technical Overview
- Control Room
- User Interface (STEX Pro Software)
- Steel Table
- Seismic Actuators
- Hardline Piping
- Hydraulic Power Units (HPUs)
- Accumulator Bank
- Seismic Reaction Mass
- Actuator Fixturing
|
|
|
1.5m Uniaxial |
|
|
Units |
Square Table |
|
Table Size |
m |
1.5 x 1.5 |
|
ft |
4.92 x 4.92 |
|
|
Number of Actuators |
QTY |
1 |
|
Simulation Frequency (max payload) |
Hz |
0 - 50 |
|
Maximum Payload |
kg |
2,000 |
|
lbs |
4,400 |
|
|
Linear Displacement |
± mm |
200 |
|
± in |
7.87 |
|
|
Linear Velocity |
mm/s |
1000 |
|
in/s |
39.37 |
|
|
Linear Acceleration (at max payload) |
g |
1.1 |
|
|
|
3m Uniaxial |
3m Biaxial |
|
|
Units |
Square Table |
Square Table |
|
Table Size |
m |
3 x 3 |
3 x 3 |
|
ft |
9.84 x 9.84 |
9.84 x 9.84 |
|
|
Number of Actuators |
QTY |
1 |
2 |
|
Simulation Frequency (max payload) |
Hz |
0 - 50 |
0 - 50 |
|
Maximum Payload |
kg |
10,000 |
10,000 |
|
|
lbs |
22,000 |
22,000 |
|
Linear Displacement |
|
|
|
|
Longitudinal (X) |
± mm |
250 |
250 |
|
± in |
9.84 |
9.84 |
|
|
Lateral (Y) |
± mm |
N/A |
250 |
|
± in |
N/A |
9.84 |
|
|
Vertical (Z) |
± mm |
N/A |
N/A |
|
± in |
N/A |
N/A |
|
|
Linear Velocity |
|
|
|
|
Longitudinal (X) |
mm/s |
1000 |
1000 |
|
in/s |
39.37 |
39.37 |
|
|
Lateral (Y) |
mm/s |
N/A |
1000 |
|
in/s |
N/A |
39.37 |
|
|
Vertical (Z) |
mm/s |
N/A |
N/A |
|
in/s |
N/A |
N/A |
|
|
Linear Acceleration (max payload) |
|
|
|
|
Longitudinal (X) |
g |
1 |
1 |
|
Lateral (Y) |
g |
N/A |
1 |
|
Vertical (Z) |
g |
N/A |
N/A |
|
|
Units |
4m 6DOF |
5m 6DOF |
|
|
Square Table |
Square Table |
|
|
Table Size |
m |
4 x 4 |
5 x 5 |
|
ft |
13.12 x 13.12 |
16.40 x 16.40 |
|
|
Number of Actuators |
QTY |
8 |
8 |
|
Simulation Frequency (max payload) |
Hz |
0 – 50 |
0 - 50 |
|
Maximum Payload |
kg |
20,000 |
30,000 |
|
|
lbs |
44,000 |
66,000 |
|
Linear Displacement |
|
|
|
|
Longitudinal (X) |
± mm |
300 |
400 |
|
± in |
11.81 |
15.75 |
|
|
Lateral (Y) |
± mm |
300 |
400 |
|
± in |
11.81 |
15.75 |
|
|
Vertical (Z) |
± mm |
150 |
250 |
|
± in |
5.9 |
9.84 |
|
|
Linear Velocity |
|
|
|
|
Longitudinal (X) |
mm/s |
1500 |
1500 |
|
in/s |
59.05 |
59.05 |
|
|
Lateral (Y) |
mm/s |
1500 |
900 |
|
in/s |
59.05 |
35.43 |
|
|
Vertical (Z) |
mm/s |
1000 |
1000 |
|
in/s |
39.37 |
39.37 |
|
|
Linear Acceleration (max payload) |
|
|
|
|
Longitudinal (X) |
g |
1.5 |
1.5 |
|
Lateral (Y) |
g |
1.5 |
1.5 |
|
Vertical (Z) |
g |
1 |
1 |
- All specifications can be customized
MTS is well known for its seismic expertise and eagerness to work with customer's specific needs. Many of the largest seismic tables in the world utilize MTS actuators and seismic control technology. Full scale structures can be tested in a controlled laboratory setting using massive or multiple seismic tables being controlled together.

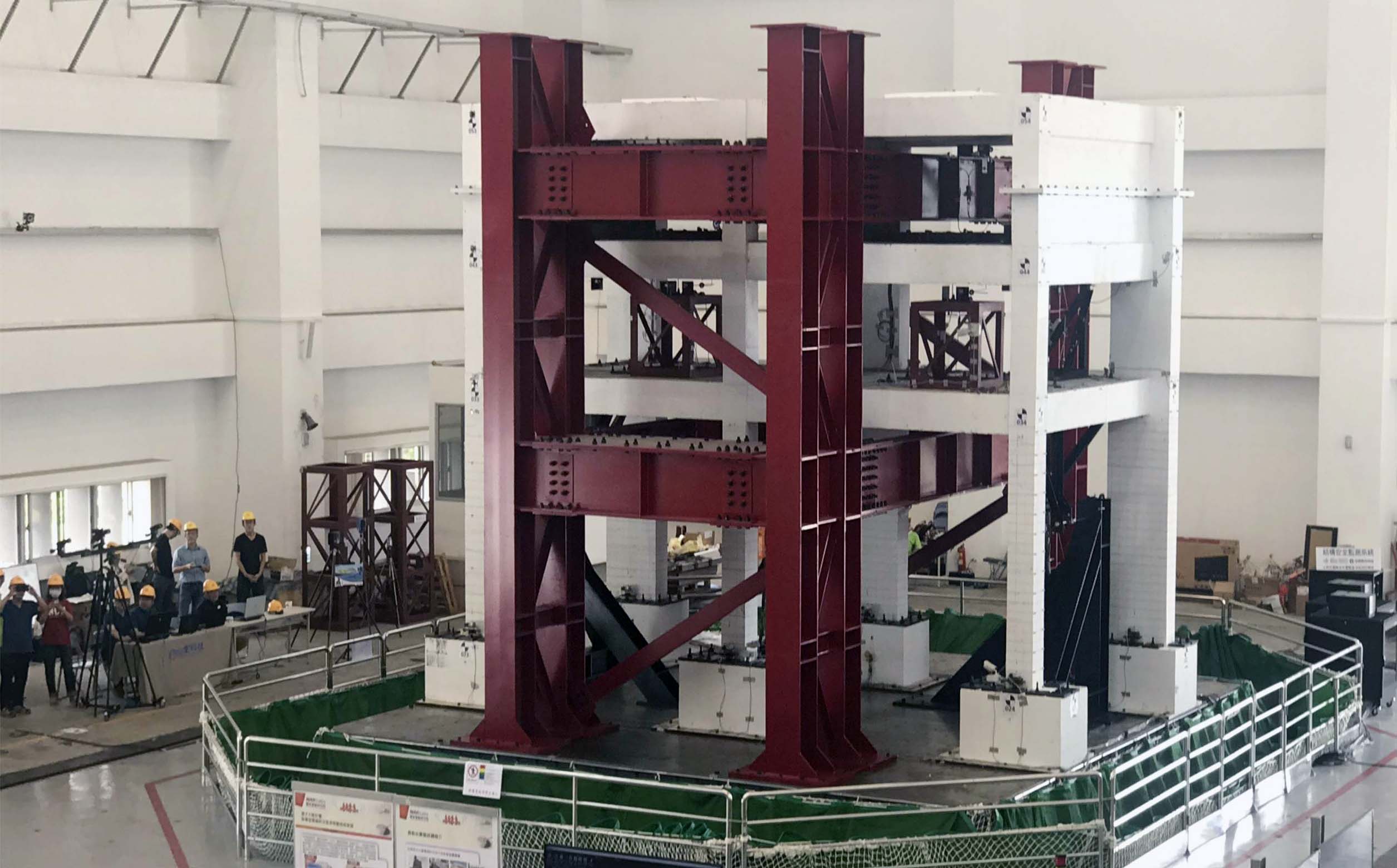

Tongji University University of California - San Diego University of Nevada - Reno
|
|
|
1.5m Uniaxial |
3m Uniaxial |
3m Biaxial |
4m 6DOF |
5m 6DOF |
354.20 6DOF |
|
|
Units |
Square Table |
Square Table |
Square Table |
Square Table |
Square Table |
Square Table |
|
Table Size |
m |
1.5 x 1.5 |
3 x 3 |
3 x 3 |
4 x 4 |
5 x 5 |
2.2 x 2.2 |
|
ft |
4.92 x 4.92 |
9.84 x 9.84 |
9.84 x 9.84 |
13.12 x 13.12 |
16.40 x 16.40 |
7.2 x 7.2 |
|
|
Number of Actuators |
QTY |
1 |
1 |
2 |
8 |
8 |
6 |
|
Simulation Frequency (max payload) |
Hz |
0 - 50 |
0 - 50 |
0 - 50 |
0 – 50 |
0 - 50 |
0 - 100 |
|
Maximum Payload |
kg |
2,000 |
10,000 |
10,000 |
20,000 |
30,000 |
2,000 |
|
lbs |
4,400 |
22,000 |
22,000 |
44,000 |
66,000 |
4400 |
|
|
Linear Displacement |
|
|
|
|
|
|
|
|
Longitudinal (X) |
± mm |
200 |
250 |
250 |
300 |
400 |
125 |
|
± in |
7.87 |
9.84 |
9.84 |
11.81 |
15.75 |
4.92 |
|
|
Lateral (Y) |
± mm |
N/A |
N/A |
250 |
300 |
400 |
110 |
|
± in |
N/A |
N/A |
9.84 |
11.81 |
15.75 |
4.33 |
|
|
Vertical (Z) |
± mm |
N/A |
N/A |
N/A |
150 |
250 |
140 |
|
± in |
N/A |
N/A |
N/A |
5.9 |
9.84 |
5.51 |
|
|
Linear Velocity |
|
|
|
|
|
|
|
|
Longitudinal (X) |
mm/s |
1000 |
1000 |
1000 |
1500 |
1500 |
1300 |
|
in/s |
39.37 |
39.37 |
39.37 |
59.05 |
59.05 |
51.18 |
|
|
Lateral (Y) |
mm/s |
N/A |
N/A |
1000 |
1500 |
900 |
1300 |
|
in/s |
N/A |
N/A |
39.37 |
59.05 |
35.43 |
51.18 |
|
|
Vertical (Z) |
mm/s |
N/A |
N/A |
N/A |
1000 |
1000 |
1700 |
|
in/s |
N/A |
N/A |
N/A |
39.37 |
39.37 |
69.93 |
|
|
Linear Acceleration (max payload) |
|
|
|
|
|
|
|
|
Longitudinal (X) |
g |
1.1 |
1 |
1 |
1.5 |
1.5 |
3.3 |
|
Lateral (Y) |
g |
N/A |
N/A |
1 |
1.5 |
1.5 |
3.4 |
|
Vertical (Z) |
g |
N/A |
N/A |
N/A |
1 |
1 |
6.3 |
- All linear translation, velocity and acceleration values are based on single degree of freedom table movement about, or from the table-top center.
- All velocity and acceleration values are peak levels. Indicated levels of performance are not achievable throughout the simulation frequency range.
- Maximum performance is only achievable when payload is mounted wholly within 1m radius (in X-Y plane) of the table center. Stated performance cannot be realized with all specimens as it is dependent on specimen modes and attachment to the table.
- Assumes solid steel test payload rigidly mounted above the table-top center
