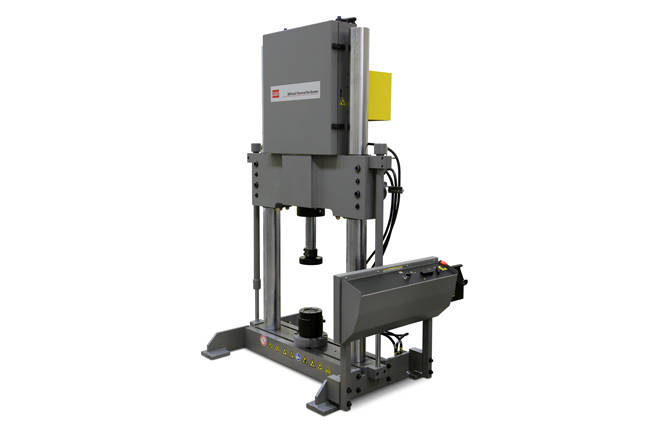

Series 809 Axial/Torsional Test Systems
Apply simultaneous axial and torsional loads and displacements to a wide array of specimens. This highly versatile test system is capable of everything from static testing to multiaxial fatigue characterization and offers superior stiffness for increased accuracy.
Applications
Testes estáticos
Testes dinâmicos
Test Specimens
Metais
Compósitos
Plásticos
Key Product Features
High Performance
Large diameter hollow columns increase stiffness and resonant frequency offering better performance
Accurate
Adjustable, widely spaced cam follower bearings minimize backlash and crosstalk between the load and torque axes
Innovative Technology
Proprietary transducer design provides high stiffness and sensitivity with low crosstalk
Precise
Patented axial/torsional coupler enables precise concentric and angular alignment
Model Comparison
Model 319.02
Maximum rated axial force capacity: 25 kN (5.5 kip)Maximum rated torsional force capacity: 220 N-m (2,000 in-lbf)Space between columns: 533 mm (21 in)Vertical test space: 1155 mm (45 in)Column diameter : 127 mm (5 in)System height: 2891 mm (114 in)
Model 319.05
Maximum rated axial force capacity: 50 kN (11 kip)Maximum rated torsional force capacity : 550 N-m (5,000 in-lbf)Space between columns : 533 mm (21 in)Vertical test space: 1155 mm (45 in)Column diameter : 127 mm (5 in)System height: 2891 mm (114 in)
Model 319.10
Maximum rated axial force capacity: 100 kN (22 kip)Maximum rated torsional force capacity: 1100 N-m (10,000 in-lbf)Space between columns: 533 mm (21 in)Vertical test space: 1155 mm (45 in)Column diameter: 127 mm (5 in)System height: 2891 mm (114 in)
Model 319.25
Maximum rated axial force capacity: 250 kN (55 kip)Maximum rated torsional force capacity : 2200 N-m (20,000 in-lbf)Space between columns: 635 mm (25 in)Vertical test space: 1464 mm (57 in)Column diameter : 152 mm (6 in)System height: 3412 mm (134 in)
Model 319.50
Maximum rated axial force capacity: 500 kN (110 kip)Maximum rated torsional force capacity : 5500 N-m (50,000 in-lbf)Space between columns : 762 mm (30 in)Vertical test space: 1638 mm (64 in)Column diameter: 191 mm (7.5 in)System height: 4020 mm (158 in)
Model 319.60
Maximum rated axial force capacity: 1000 kN (220 kip)Maximum rated torsional force capacity: 11000 N-m (100,000 in-lbf)Column diameter: 229 mm (9 in)
Custom Configurations
Contact MTS for custom options
Full Product Information
Dimensions

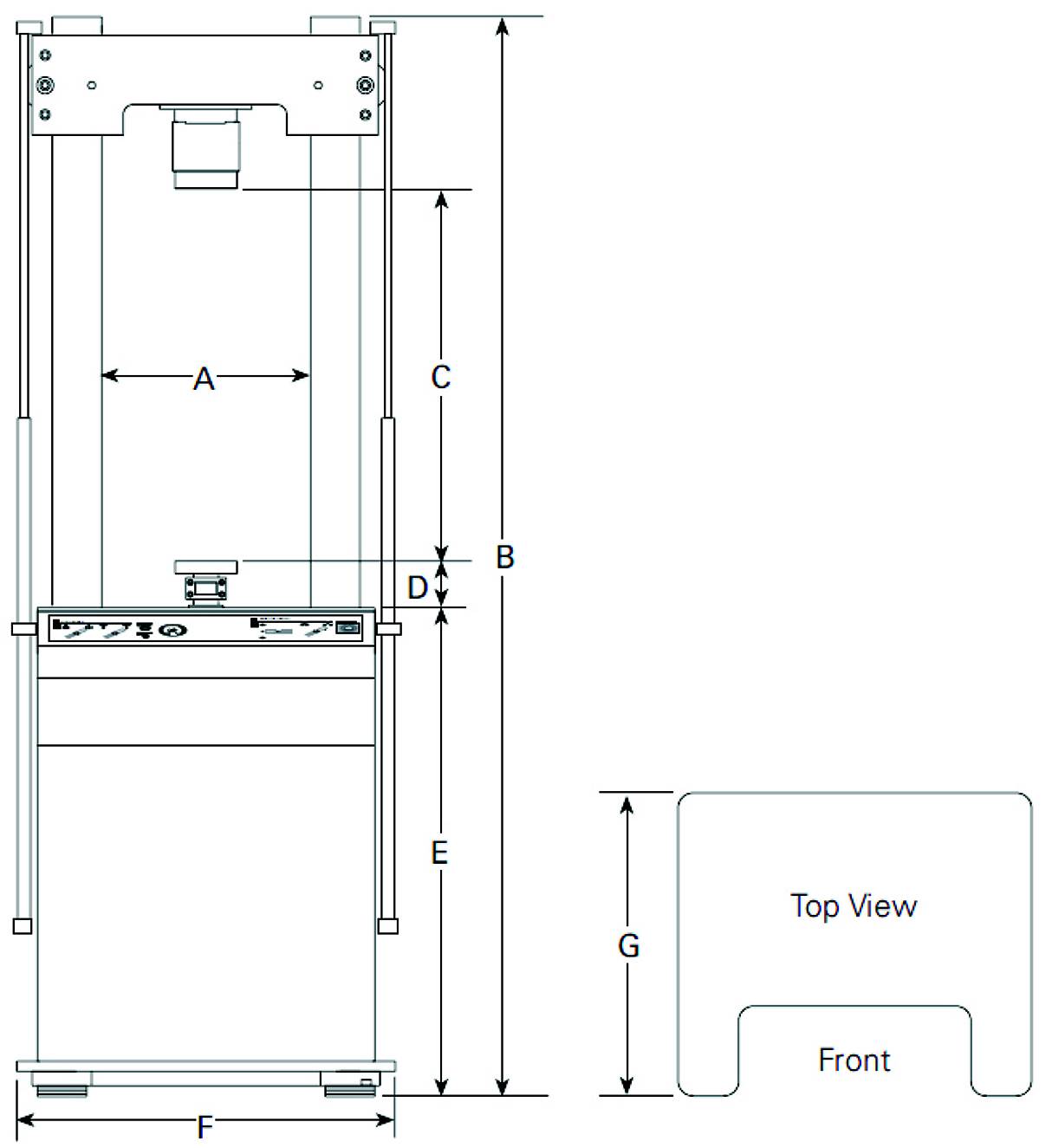

Load Frame Dimensions
Model
A
B
C*
D*
E
F
G
319.02
533 mm (21 in)
2891 mm (114 in)
1155 mm (45 in)
130 mm (5 in)
1240 mm (49 in)
1000 mm (39 in)
762 mm (30 in)
319.05
533 mm (21 in)
2891 mm (114 in)
1155 mm (45 in)
130 mm (5 in)
1240 mm (49 in)
1000 mm (39 in)
762 mm (30 in)
319.10
533 mm (21 in)
2891 mm (114 in)
1155 mm (45 in)
130 mm (5 in)
1240 mm (49 in)
1000 mm (39 in)
762 mm (30 in)
319.25
635 mm (25 in)
3412 mm (134 in)
1464 mm (57 in)
193 mm (8 in)
1278 mm (50 in)
1238 mm (49 in)
838 mm (33 in)
319.50
762 mm (30 in)
4020 mm (158 in)
1638 mm (64 in)
298 mm (12 in)
1403 mm (55 in)
1416 mm (56 in)
940 mm (37 in)
*Actuator fully retracted and crosshead in max position.
General Specifications & Weights
Parameter
Specification
Load Frame
MTS 319
Crosshead Lifting
Hydraulic
Crosshead Locking
Hydraulic
Fixture Control
Hydraulic
Servovalve Block
MTS 298.12, high-pressure/low-pressure/ON/OFF
Maximum Flow
Total tensional-torsional flow 114L/min
Axial Actuating Rod
MTS 244
Axial Displacement
150 mm (6 in)
Torsional Actuating Rod
MTS 215
Torsional Travel
Static +/-50 degrees, Dynamic +/-45 degrees
Tightly Coupled Accumulator
MTS 111
Weight (Excluding Fixtures & Accessories)
319.02
1100 kg (2424 lb)
319.05
1200 kg (2646 lb)
319.10
1300 kg (2866 lb)
319.25
1900 kg (4189 lb)
319.50
3100 kg (6834 lb)
319.60
Custom

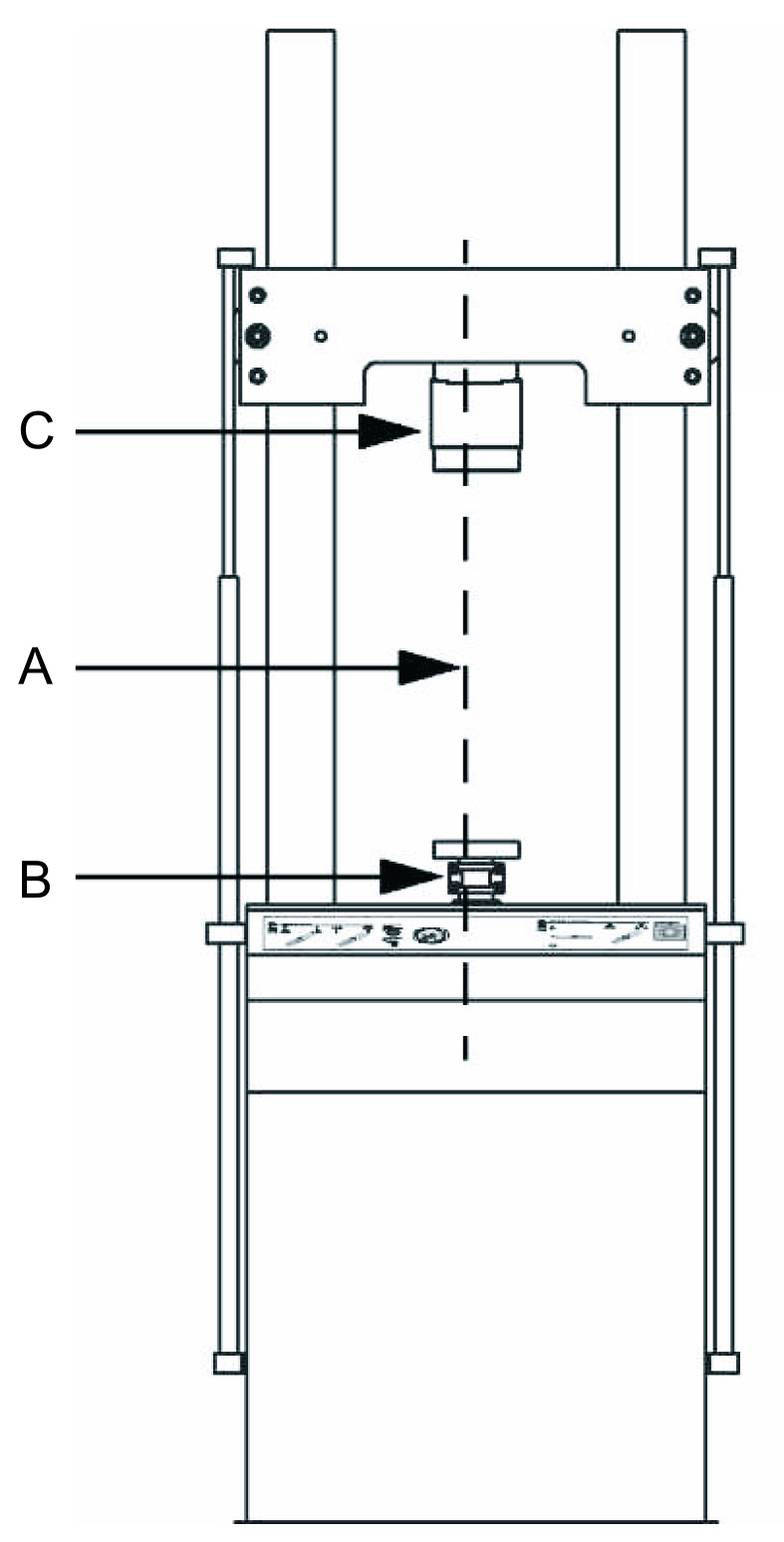

Stiffness Data
Load Unit Stiffness (SI Metric)
Model
Load Unit (A)
Piston Rod (B)
Load Transducer (C)
Axial (N-m)
Torsional (N-m/radian)
Axial (N-m)
Torsional (N-m/radian)
Axial (N-m)
Torsional (N-m/radian)
319.02
2.6x10 8
7.9x10 6
1.1x10 9
4.3x10 4
2.6x109
6.8x10 5
319.05
2.6x10 8
7.9x10 6
2.6x10 9
1.9x10 5
4.7x10 9
1.4x10 6
319.10
2.6x10 8
7.9x10 6
2.6x10 9
1.9x10 5
3.3x10 9
1.1x10 6
319.25
5.6x10 8
1.3x10 7
4.3x10 9
3.5x10 5
8.2x10 9
4.3x10 6
319.50
8.8.x10 8
2.6x10 7
6.4x10 9
1.6x10 6
1.2x10 10
9.0x10 6
319.60
1.2x10 9
4.5x10 7
6.6x10 9
1.7x10 6
1.9x10 10
2.5x10 7
Load Unit Stiffness (US Customary)
Model
Load Unit (A)
Piston Rod (B)
Load Transducer (C)
Axial (lbf/in)
Torsional (lbf/in/radian)
Axial (lbf/in)
Torsional (lbf/in/radian)
Axial (lbf/in)
Torsional (lbf/in/radian)
319.02
1.5x10 6
7.0x10 7
6.3x10 6
3.8x10 5
1.5x10 7
6.0x10 6
319.05
1.5x10 6
7.0x10 7
1.5x10 7
1.7x10 6
2.7x10 7
1.3x10 7
319.10
1.5x10 6
7.0x10 7
1.5x10 7
1.7x10 6
1.9x10 7
1.0x10 7
319.25
3.2x10 6
1.2x10 8
2.5x10 7
3.1x10 6
4.7x10 7
3.8x10 7
319.50
5.0x10 6
2.3x10 8
3.7x10 7
1.4x10 7
7.0x10 7
8.0x10 7
319.60
7.0x10 6
4.0x10 8
3.8x10 7
1.5x10 7
1.1x10 8
2.2x10 8
